PrivateWave
Quick Start Guide for BlackBerry 10
This guide provides you easy step-by-step instructions to help you get started with PrivateWave .
Secure calls with PrivateWave
Calling with PrivateWave is a very easy task. You can both use your contact list or directly dial a number using the dialpad.
To make a secure call, you and the called party must have PrivateWave software running on the mobile device, be connected to the Internet and to the same PrivateServer .
Calling by contact list
As you can see in figure 2. you address book is shared with the application each contact can show a coloured ball at its left, or nothing at all. These are status marker and they represent the Presence Status for each contact.
Presence
The Presence avoid users to call contacts who are not reachable, eg: because they do not have PrivateWave activated and/or connected. The main value of this feature is to improve user experience suggesting the possible outcome of a call.
Contacts lists
- ALL: it lists all the contacts which are in the mobile address book, ordering them in the very same way.
- KNOWN: it shows only known contacts (registered or not) according to PrivateServer 's knowledge. This means it is a list of the contacts that are recognised by the server and thus can have a status.
- FAVOURITES: it reads the contacts marked by you as " PrivateWave favorites". It's a selection of contacts you choose to have apart, in order to make speed calls.
Contact status
Online | The contact is reachable. You can make a secure call to the user. | |
Offline | The contact is not reachable, because is not under network coverage or is offline. You can try to make a secure call but the call will likely fail | |
Warning | The contact is not reachable using a full secure call, but you can call him using one Sip Trunk configured on your server. | |
Error | There is a comunication error between your phone and the server. The contact status is unknown, anyway you can try to make a secure call |
Calling by keyboard
You can make a secure call to any arbitrary number (presuming that the call peer has PrivateWave connected) by simply entering the number on PrivateWave main menu and pressing the dial button.
Receiving a secure call with PrivateWave
Once PrivateWave is installed and all the settings are correctly configured on your device, you are able to receive a secure call. PrivateWave displays a screen when an incoming secure call is arrives to your phone. Press the Accept (green) button to allow the connection. After the system have exchanged and verified the security keys the you can start the conversation.
To receive a secure call PrivateWave has to be running and be connected to the Internet.
Call status
To establish a call PrivateWave completes three phases shown by three icons:
Call status icons
Red light | Starting the connection | Connection not yet established. This step may take several seconds | |
Green light | Secure call established | Connection established and secure. You can now speak securely |
Checking your security
A PrivateWave call is always encrypted. The call is automatically secured during the call setup. As soon as the call is established you can immediately start to talk securely with your call peer.
The security of the call is based on a digital certificate verification on the SIP/TLS server. If a certificate error appears check whether the date of your phone is correct. If the date is correct it is possible that the certificate is wrong, misconfigured or expired or that your phone is undergoing a security attack. In these cases always contact your system administrator.
History
Every event performed or received on your PrivateWave is listed into the "History" view, which can be displayed by selecting "Recent" item in the Main view.
figure 6. recent event list
|
figure 7. Event detail icon
|
Each event has a detail icon (the (i) at that ends of each event line shown in figure 7. Event detail icon).
You can access event's details by tapping on the (i) icon and thus have access to all the call events for the event listed in the call history (figure 8. event detail).
Secure Messages
You can communicate with your peers by text messages using the Secure Messages System which provides Secure Messages. A Secure Message is a text message that travels into the same encrypted architecture of the Secure Call.
The maximum length of a single message is 160 character
Secure Message are always persistent in blackberry 10 .
Figure 1. blackberry message history
|

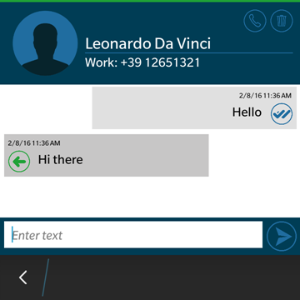

figure 9. Blackberry 10 Message History Details
|
Secure Message System need specific abilitation. If the service is not available on your device please contact your support team to check it's enabled on your account.
Sending Secure Messages from "Secure Messages" tab
Sending Secure Messages from "Messages" view is very easy and straight forward.

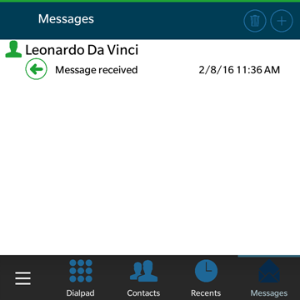

figure 10. blackberry message history
|

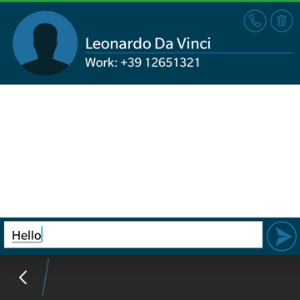

figure 11. blackberry Composer
|
figure 12. "enter" keyboard button
|
- If the conversation already exist in "Messages" view, then just tap on its entry to pop-up composer and write your Secure Message (as in figure 11. blackberry Composer).
- As you can see in figure figure 12. "enter" keyboard button: you can type Secure Messages and send them to your party by pressing enter button (cfr. figure 12. "enter" keyboard button).
- If you want to start a new chat by Secure Messages, then just click on + button highlighted as in figure 10. blackberry message history. Contact list will pop-up, tap on contact to whom you want to send Secure Message and composer will popup (as in figure 11. blackberry Composer) and now you are ready to write your secure message..
- It is also possible to insert a phone number, composer will popup figure 11. blackberry Composer and now you are ready to write your secure message.
Sending Secure Messages from "Contacts" tab
Secure Messages are also available from "Contacts list" tab.

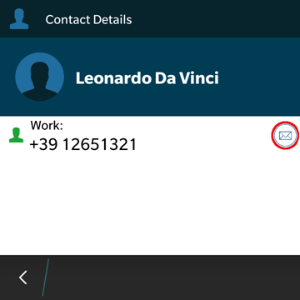

You have to select a contact from the list shown in figure 2. you address book is shared with the application, tap on the contact and show its details figure 13. contacts list details, click on send secure message icon highlighted, composer will pop up .
Secure Messages status icons and known limitations
Each Secure Message is displayed with an icon showing its status. Most important icons are:
Icon | Meaning |
---|---|
Sending Message | |
Message Delivered | |
Error sending Message |
There are few known limitations in the current Secure Message System:
Actually it's not possible to use Secure Messages in order to chat with multiple people (ie it's not possible to create chat rooms).
